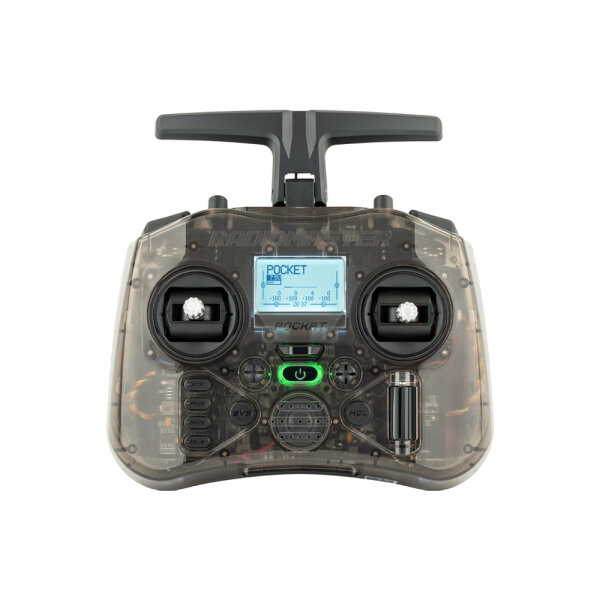

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.
In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.
The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.
Features
- Available in ExpressLRS Backpack and MPM CC2500 versions
- Preinstalled with EdgeTX firmware
- 18650 Batteries, all the power you need for hours of fun (Batteries not included)
- Portable and lightweight design with removable stick ends and foldable antenna
- Features hall effect gimbals as standard for smooth centering & precise response
- Built-in LED lights help visualize your switch positions (SA & SD)
- Backlit LCD Screen offering a perfect balance of size and functionality
- Trim buttons for easy channel trimming
- External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
- 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style
EU-LBT VERSION
"Listen Before you Talk" is the abbreviation for a technical feature in radio transmission, which is mandatory for operation within the EU. Therefore, all our remote controls are shipped with this firmware.
This means:
- CC2500 Multiprotocol modules are limited to the LBT-enabled protocols FrSKY X/X2 LBT, HoTT LBT, and DSMX
- ELRS modules come pre-installed with EU-approved LBT firmware and are limited to a maximum output power of 100 MW
Battery Included!
On default we ship the radio with battery included. On request we take the battery out and deduct the relevant amount! Please contact us in case you whish to purchase without battery.
Specifications
| Item |
Pocket Radio |
| Physical dimensions |
156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size? |
| Weight |
288 grams |
| Operating frequency |
2.400GHz-2.480GHz |
| Internal RF Options |
CC2500 multi-protocol / ELRS 2.4GHz |
| Supported protocols |
Module dependent |
| RF power |
CC2500 20dBm max / ELRS FCC: 24dBm max / ELRS EU-LBT: 20dBm max |
| Operational voltage |
6.6-8.4v DC |
| Control distance |
> 2km @ 20dBm |
| Operating system |
EdgeTX |
| Control channels |
Maximum 16 (Receiver dependent) |
| Display |
128*64 Monochrome LCD |
| Battery |
2pcs 18650 batteries (Not included) |
| Charging |
Built in USB-C QC3 Charging |
| Upgradable Firmware |
Via USB or the included SD card |
| Gimbal |
Hall-effect |
| Module bay |
Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer ) |
